IV Pole Cradle v2

The current OpenPoleMount design — the recommended cradle for holding the Curlin CMS6000 on a home IV pole.

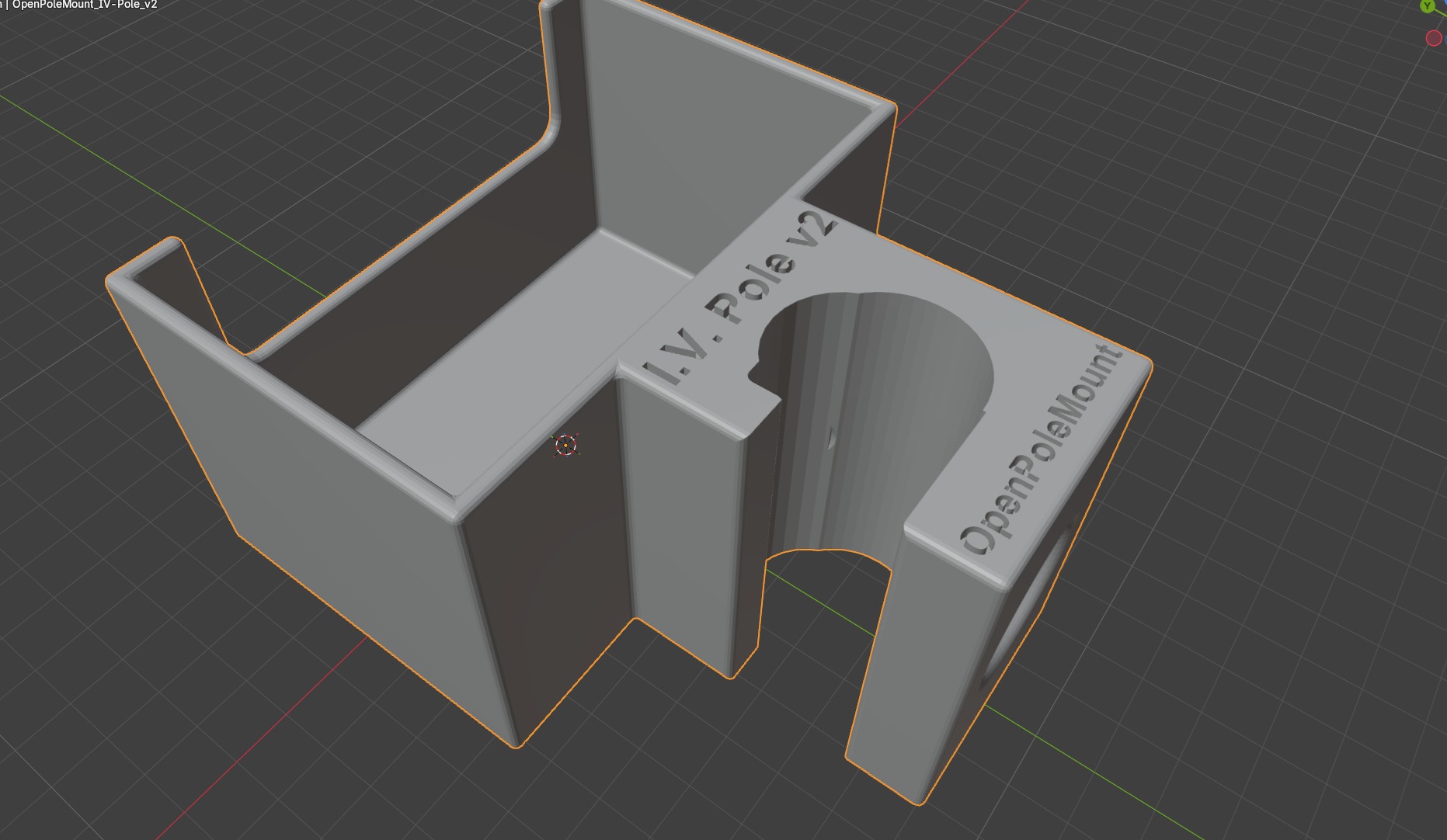

IV Pole Cradle v2 — Blender model, pump pocket at left, U-shaped pole channel at right IV Pole Cradle v2 in Blender — U-shaped pole channel and thumbscrew boss at right, pump pocket at left, embossed "I.V. Pole v2" / "OpenPoleMount" labels.

This is the design to print

v2 is the recommended cradle. The pump seats fully and securely in the pocket with the keypad and screen accessible, and the printed T-handle thumbscrew clamps it to a standard home IV pole. It uses the thumbscrew_v14_flat_Thandle.stl thumbscrew and the OpenPoleMount block standard.

The original v1 is not functional as a pump cradle — the pump buttons and screen are not accessible when the pump is seated in it. v1 is best repurposed as an accessory box that mounts on the pole below the pump.

Printing Footage

Installed Photos

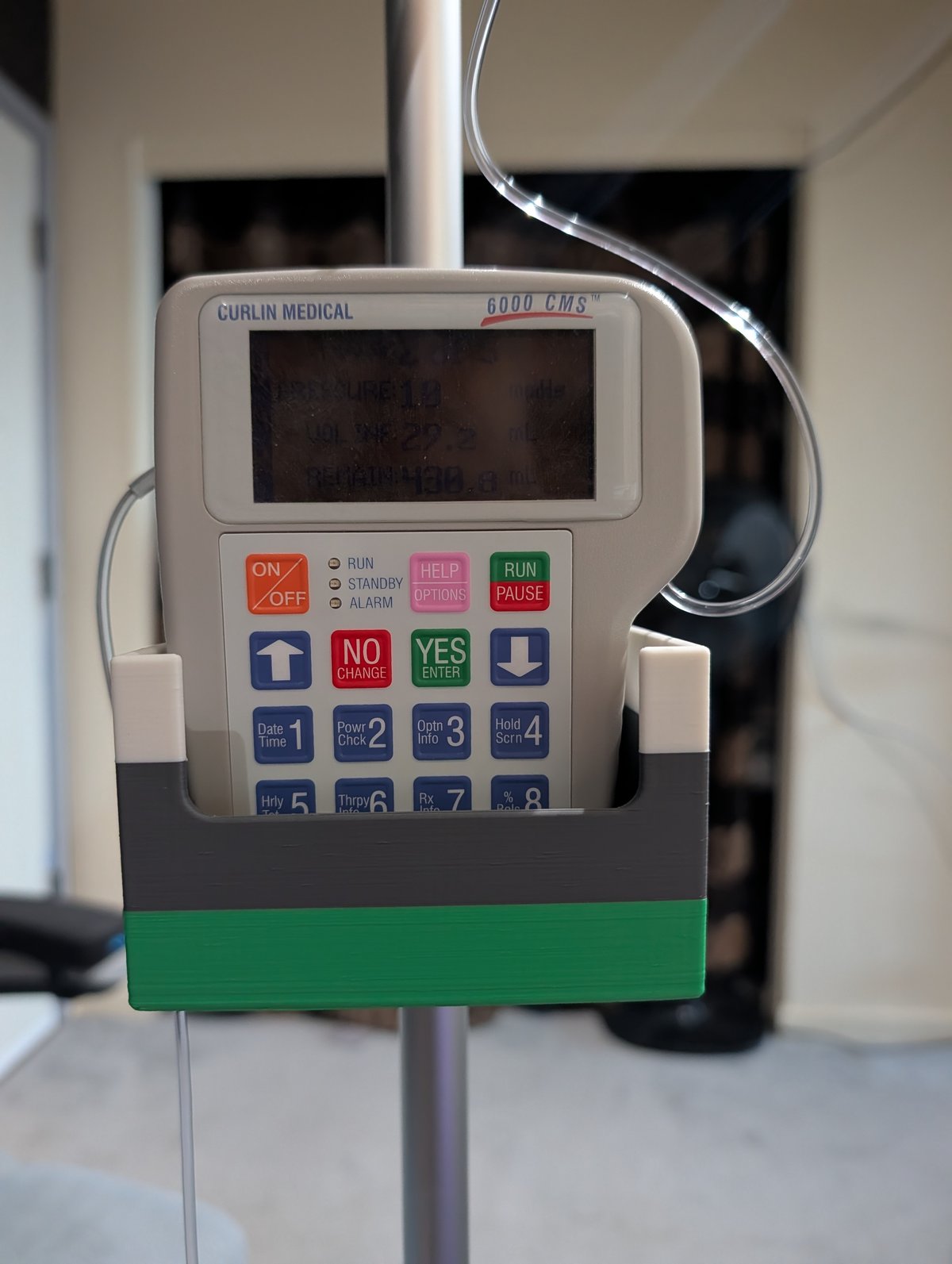

Curlin CMS6000 in V2 cradle — front view

Front — pump fully seated, keypad accessible

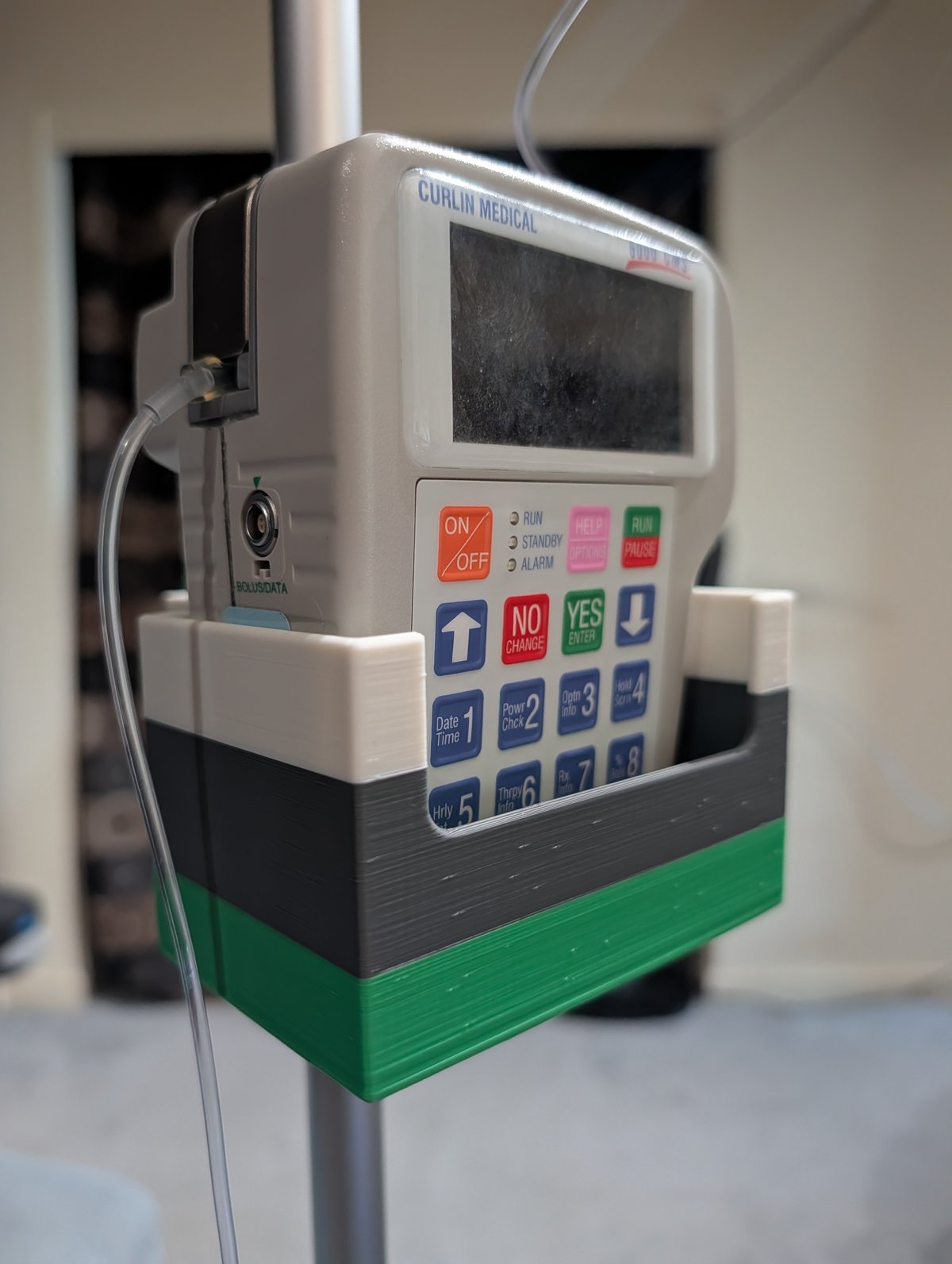

V2 mount — 3/4 angle view

3/4 angle — pump in cradle, IV tubing routed

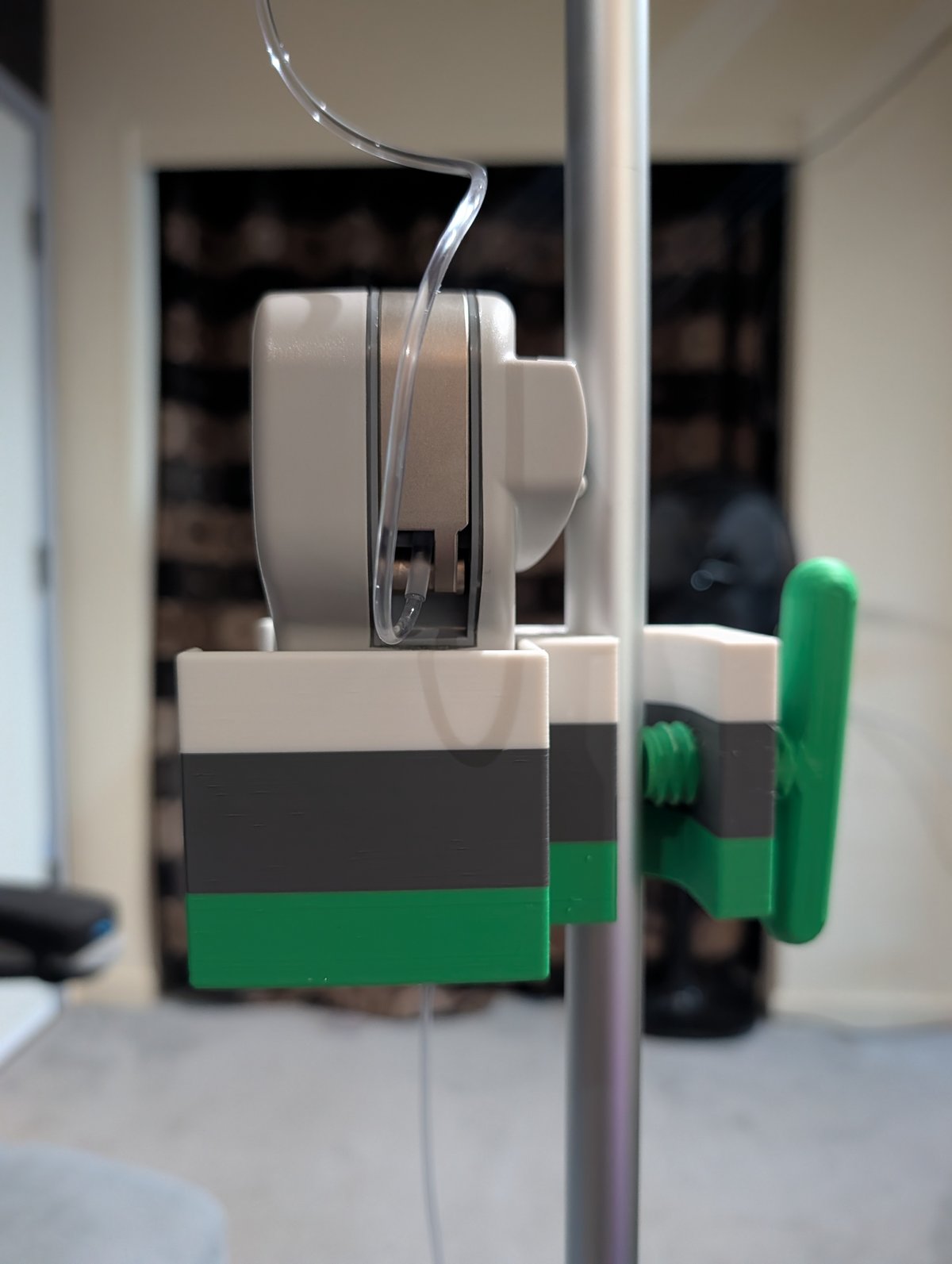

V2 mount — rear with thumbscrew

Rear — green T-handle thumbscrew on pole

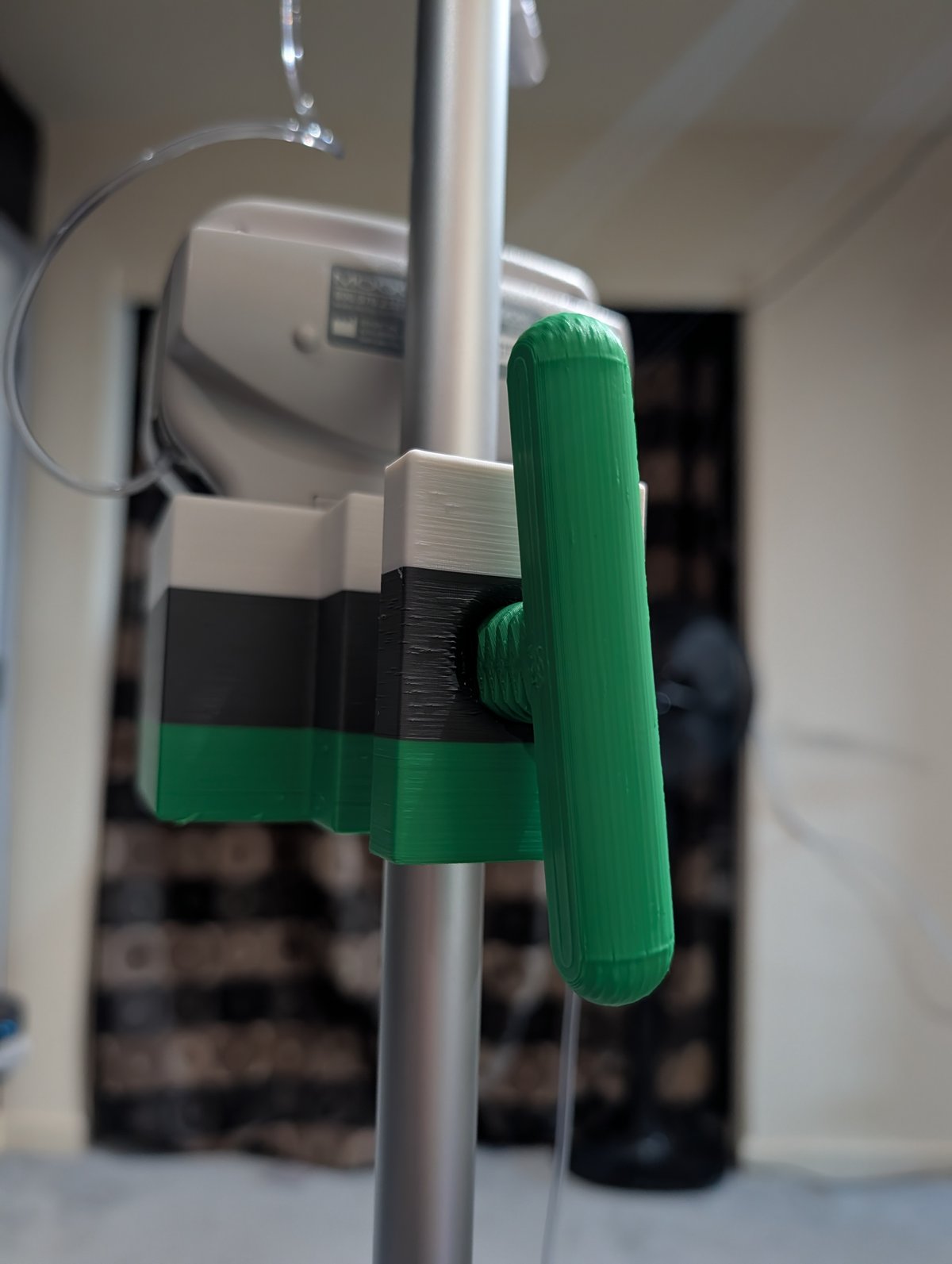

T-handle thumbscrew close-up

Thumbscrew detail — hand-tighten only

Curlin CMS6000 — More Views

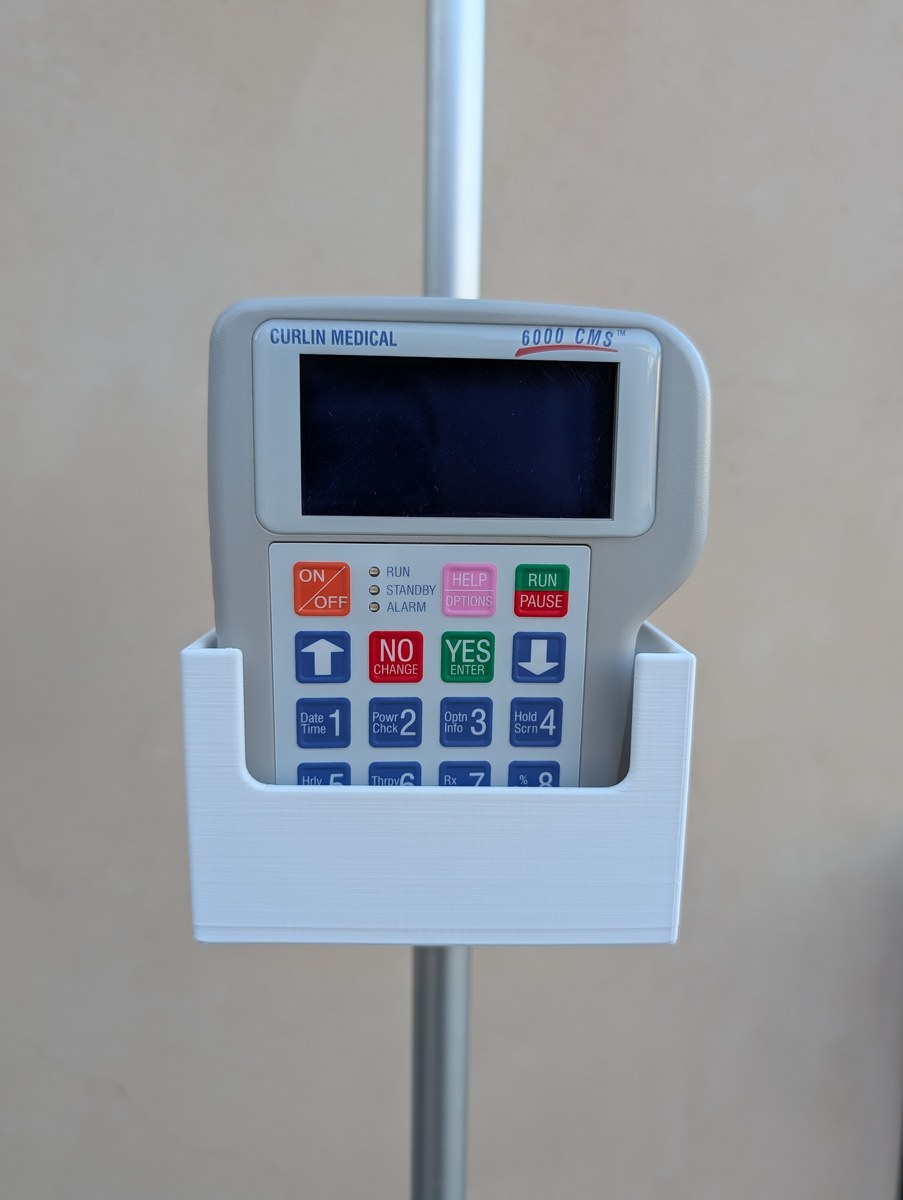

Curlin CMS6000 front in V2 cradle

Curlin CMS6000 — front view, pump fully seated

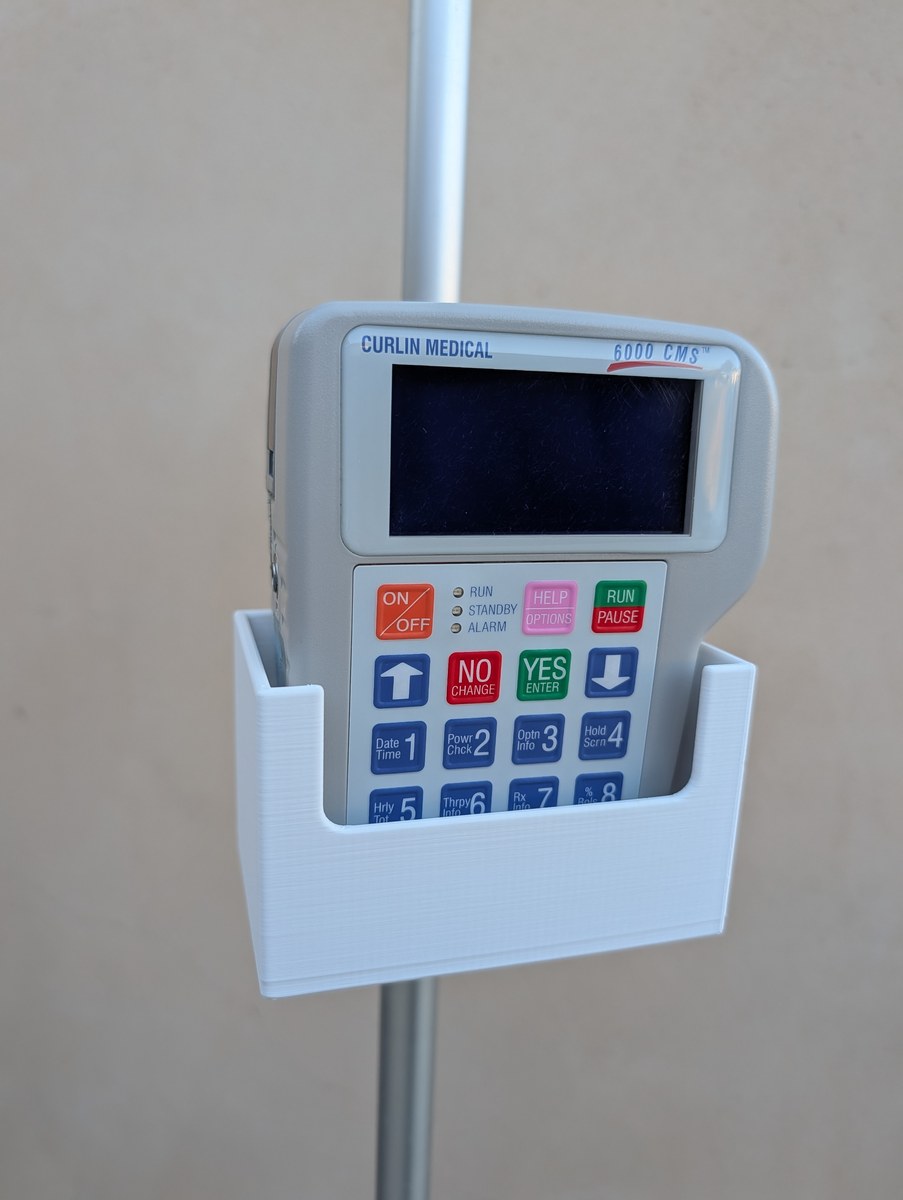

Curlin CMS6000 straight-on in V2 cradle

Curlin CMS6000 — straight-on, keypad fully visible

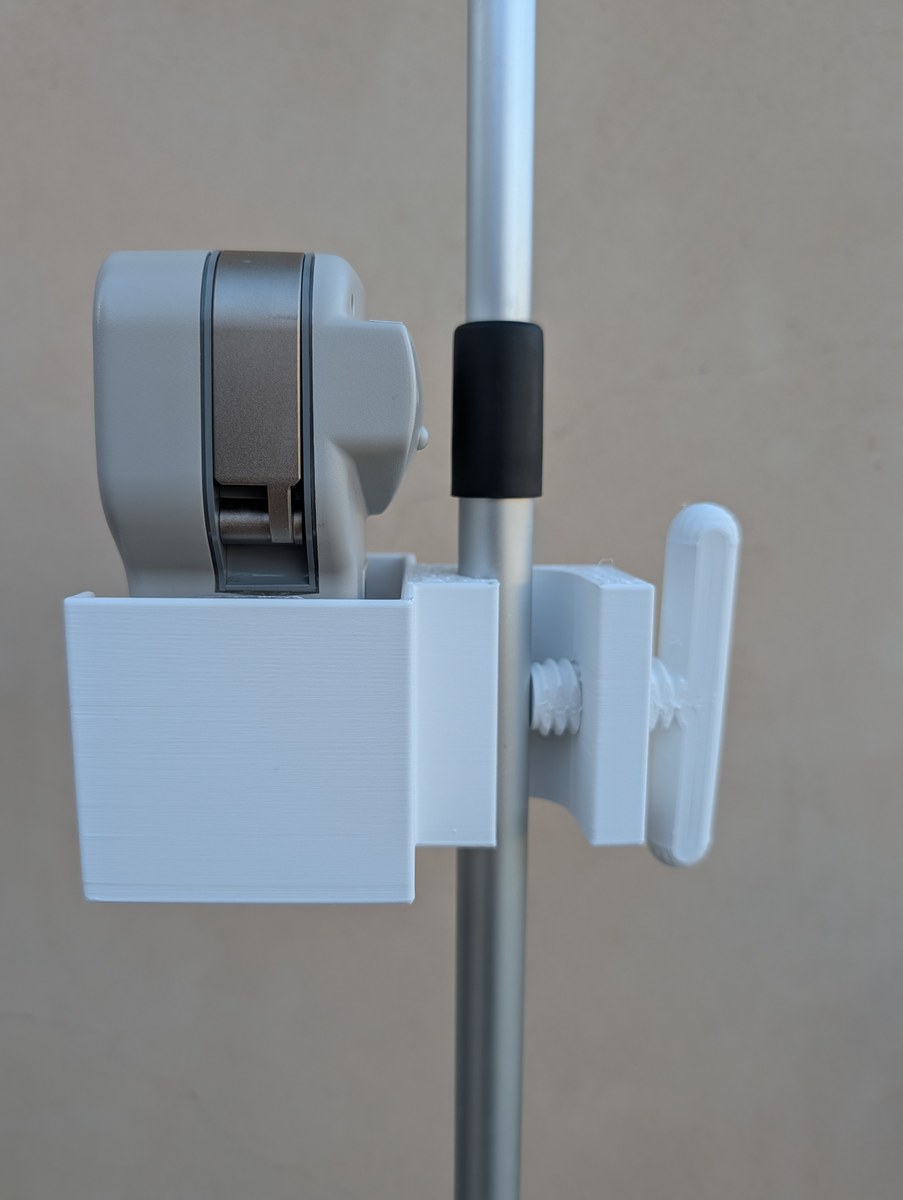

Curlin CMS6000 in V2 cradle — side view

Side — cradle body and pole channel visible

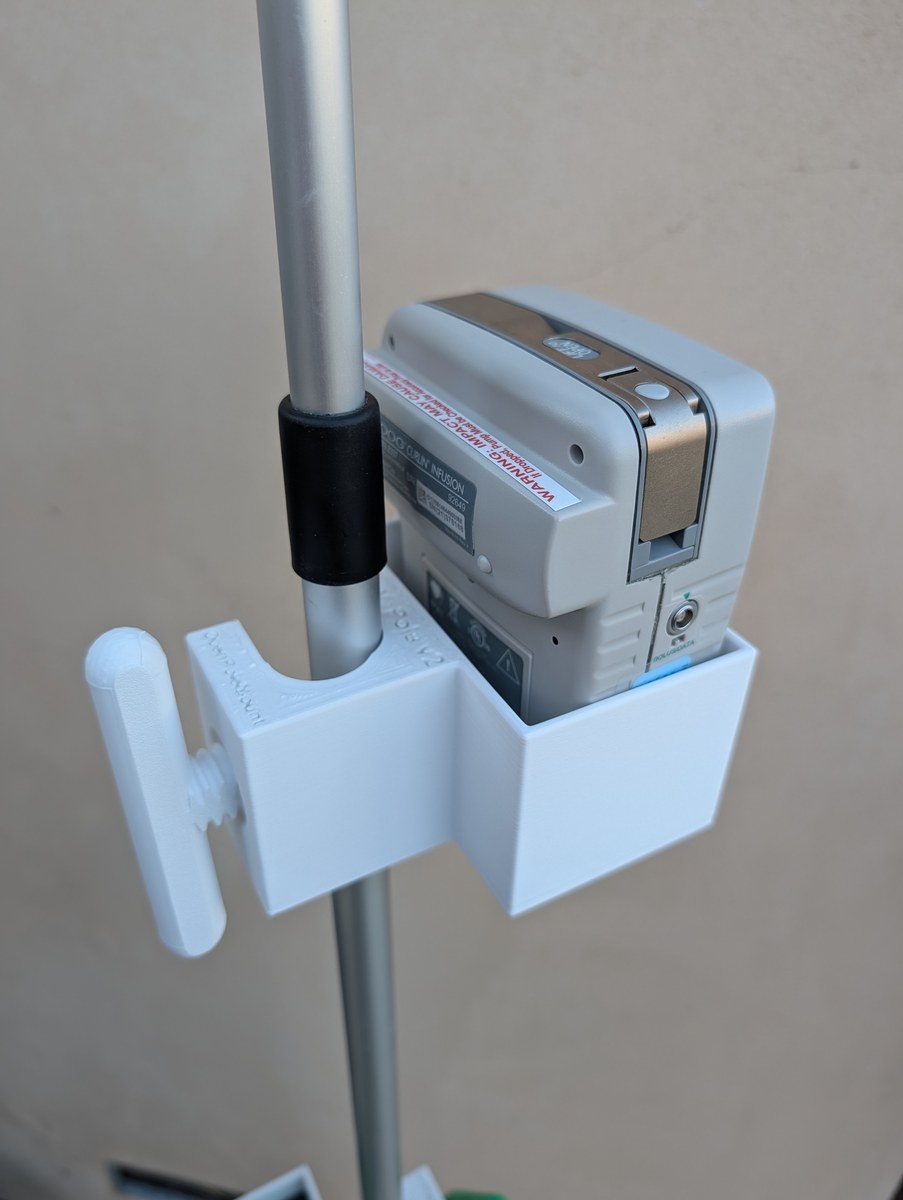

Curlin CMS6000 in V2 cradle — overhead angle

Overhead angle — pump seated in cradle pocket

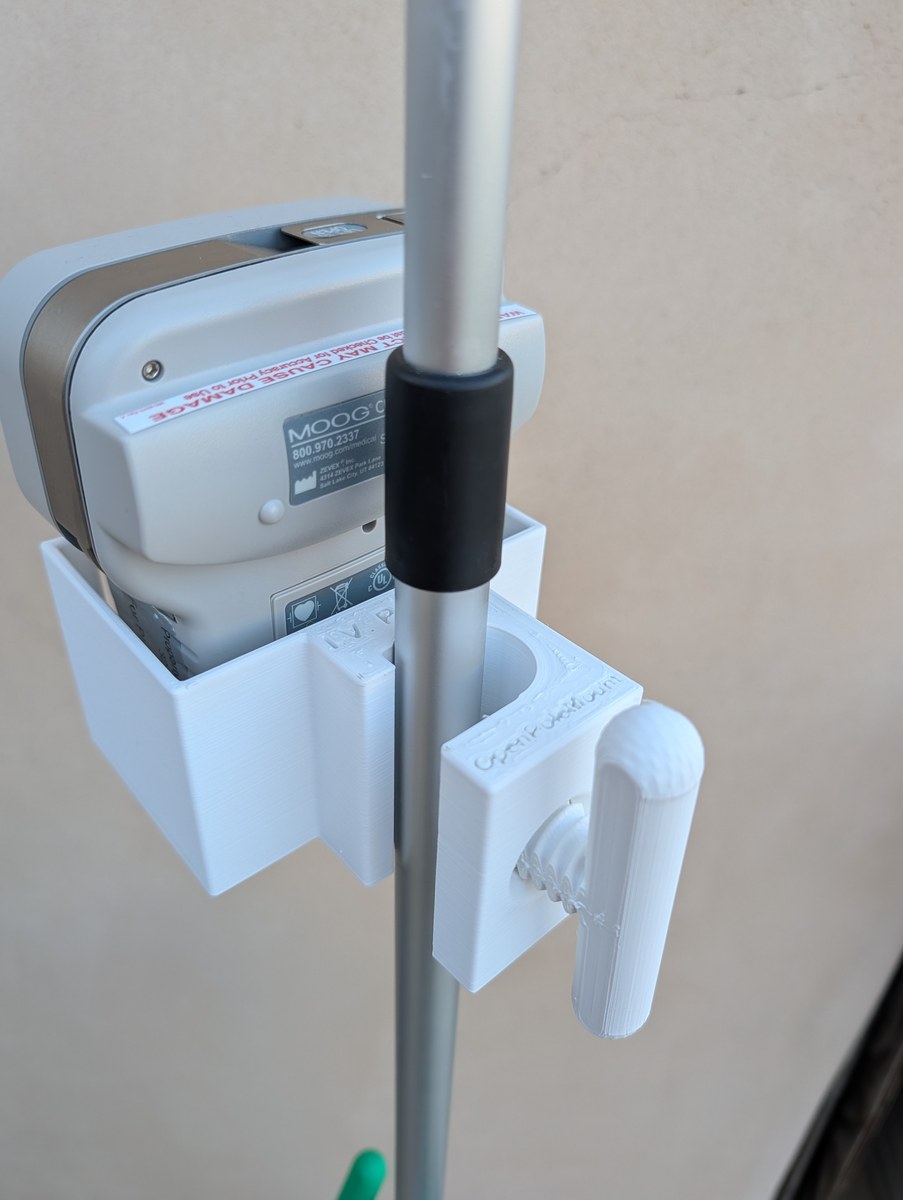

Curlin CMS6000 in V2 cradle — back-left view

Back-left — rear of pump, thumbscrew engaged

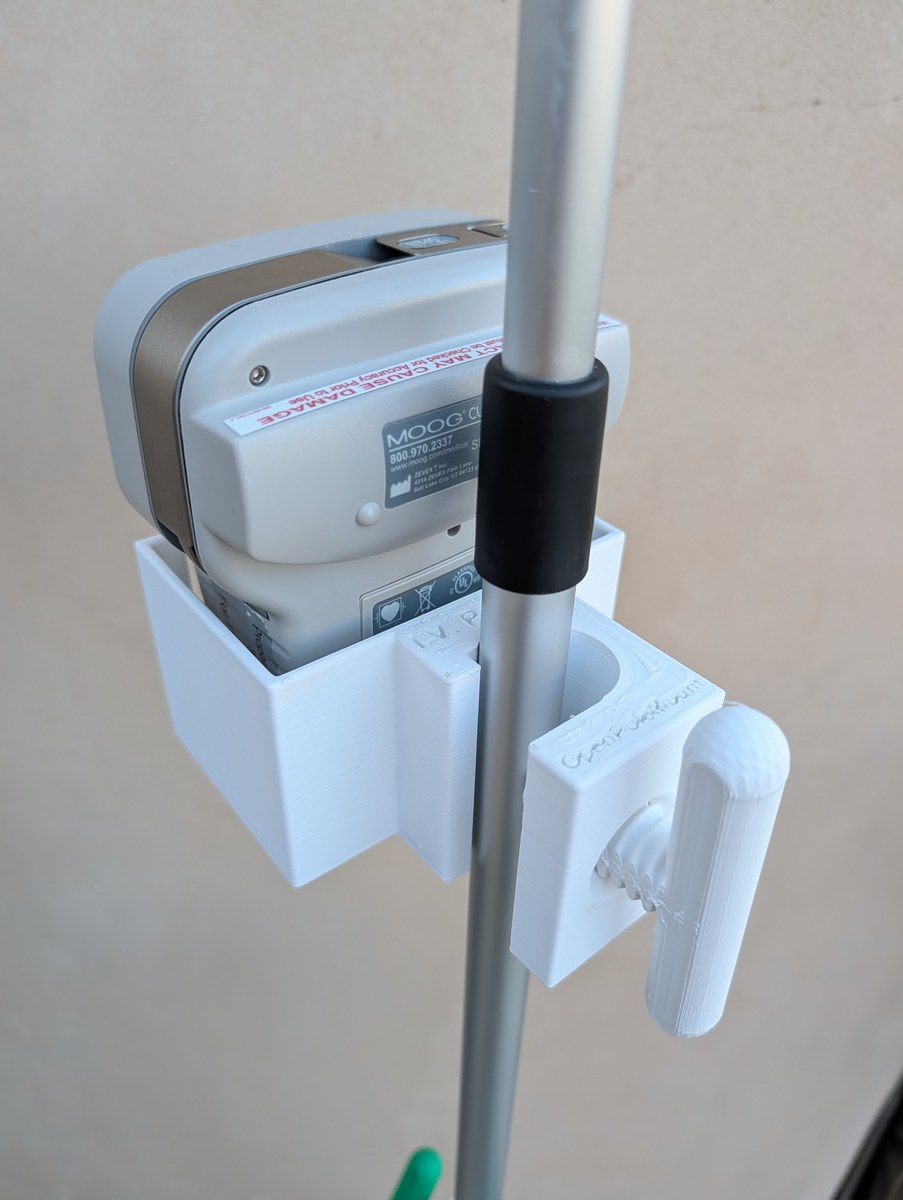

Curlin CMS6000 in V2 cradle — back-right view

Back-right — pump seated, pole channel at right

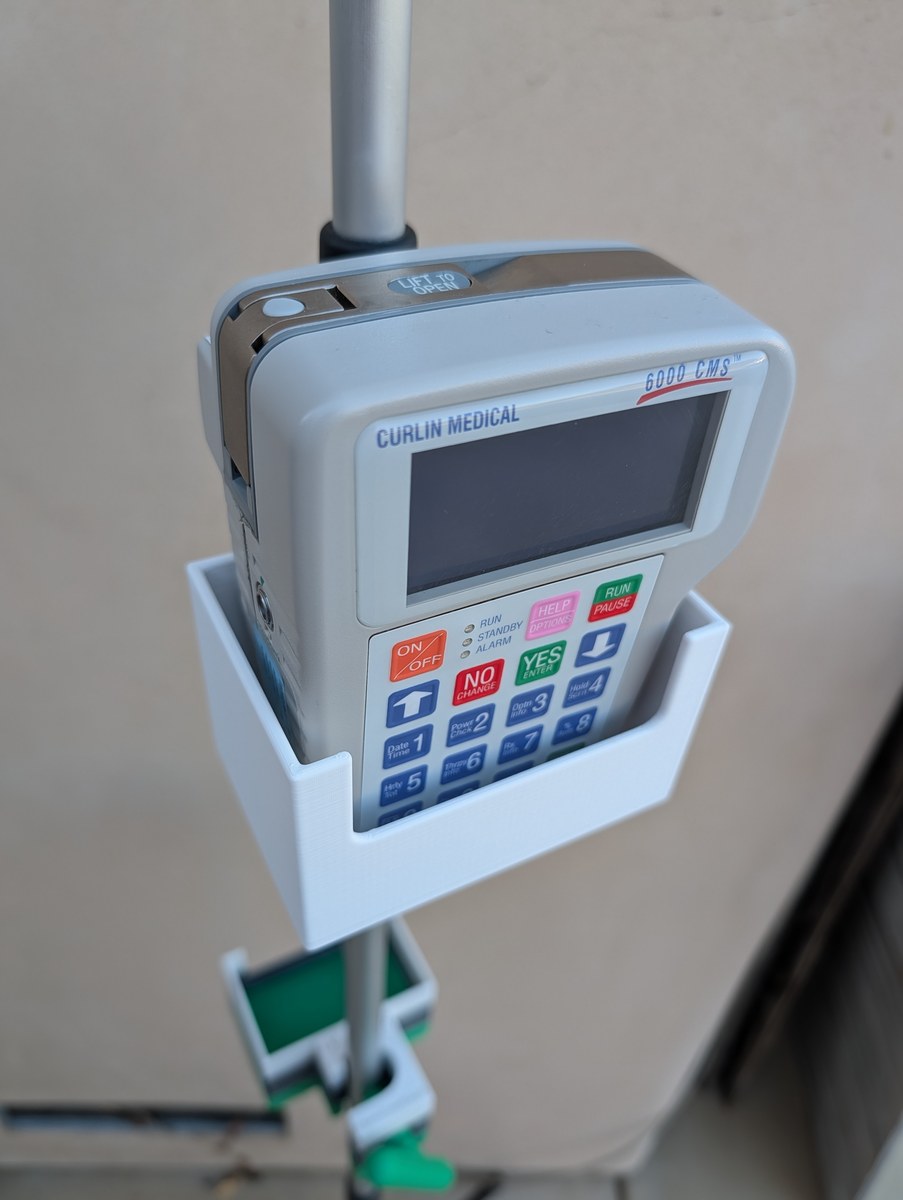

Curlin CMS6000 in V2 cradle — top-down

Top-down — pump fully seated in cradle pocket

Cradle Detail — Empty

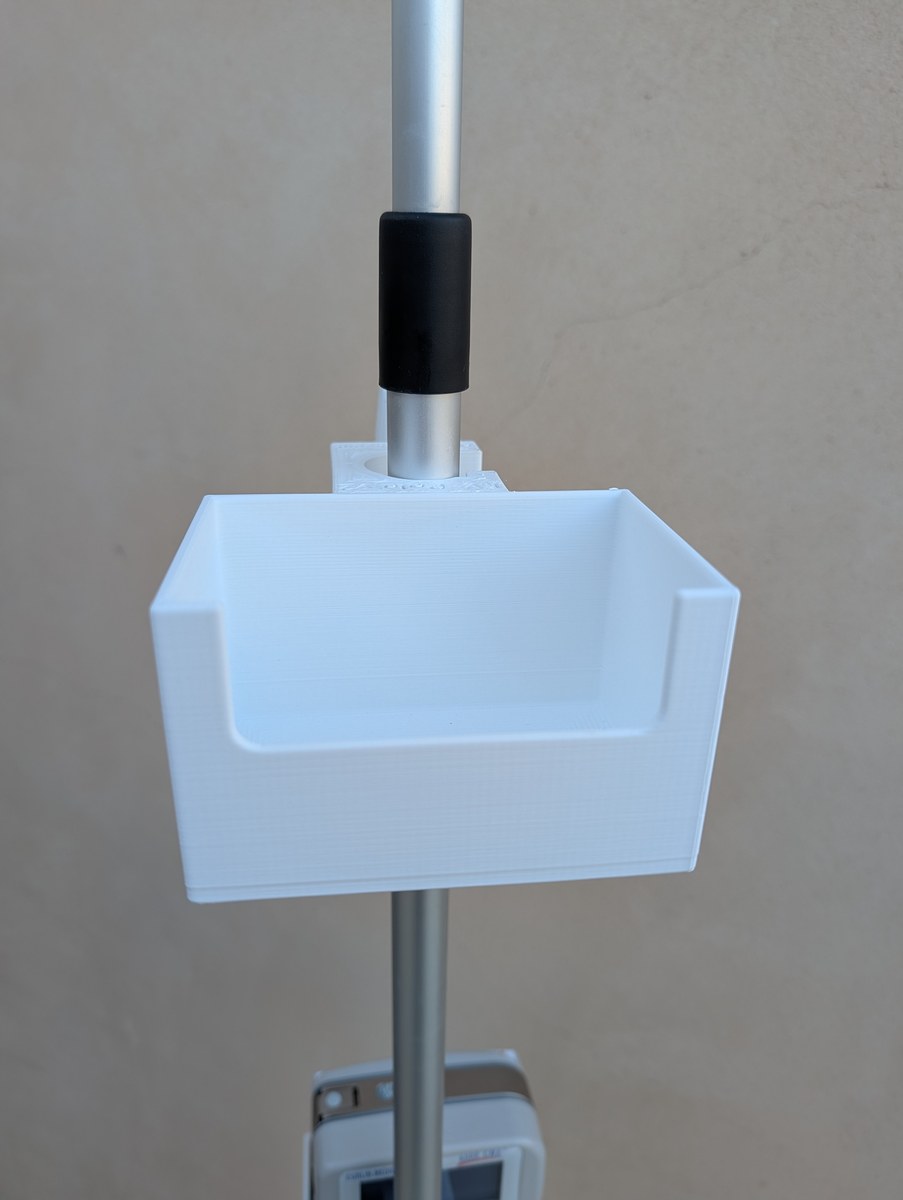

V2 cradle empty — front view

Empty cradle — open front shows the pocket shape

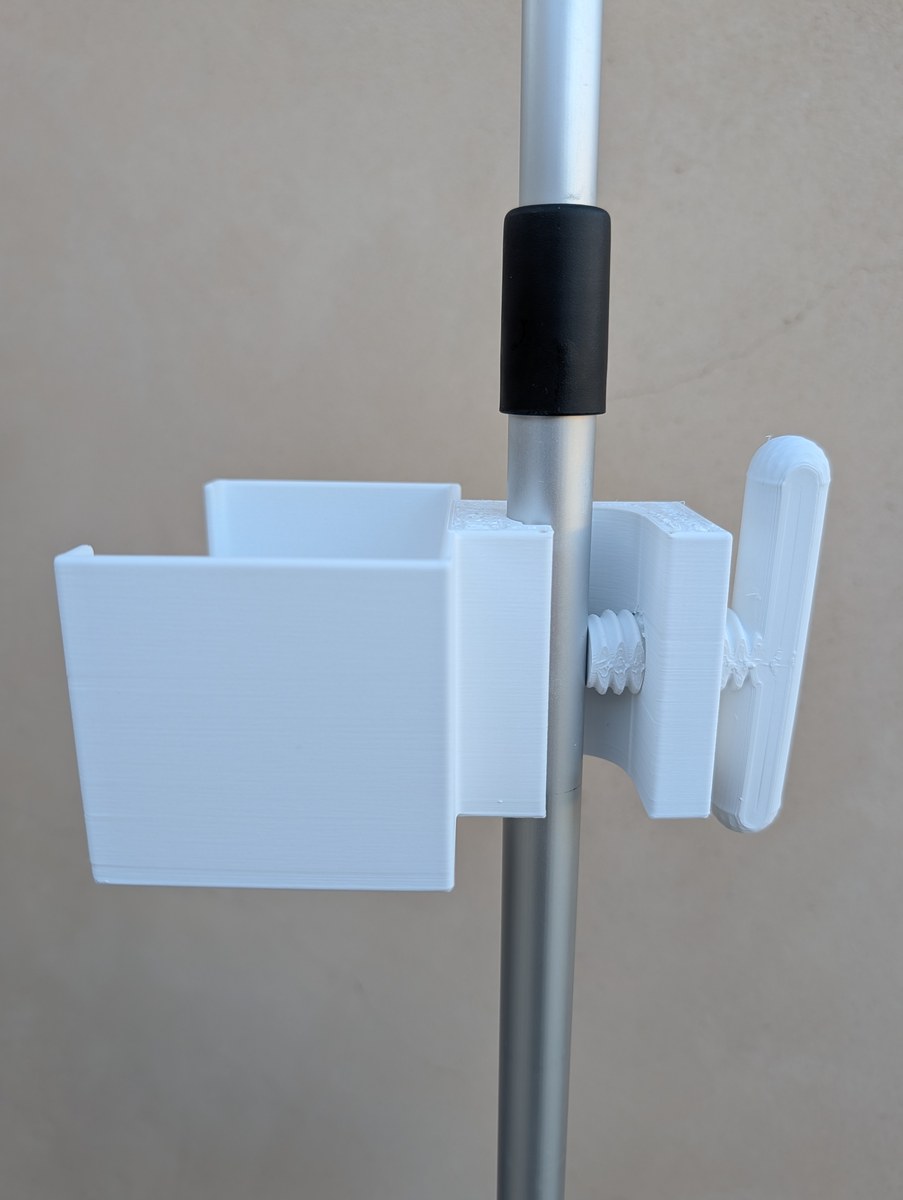

V2 cradle empty — side with thumbscrew

Side — thumbscrew threaded through pole channel

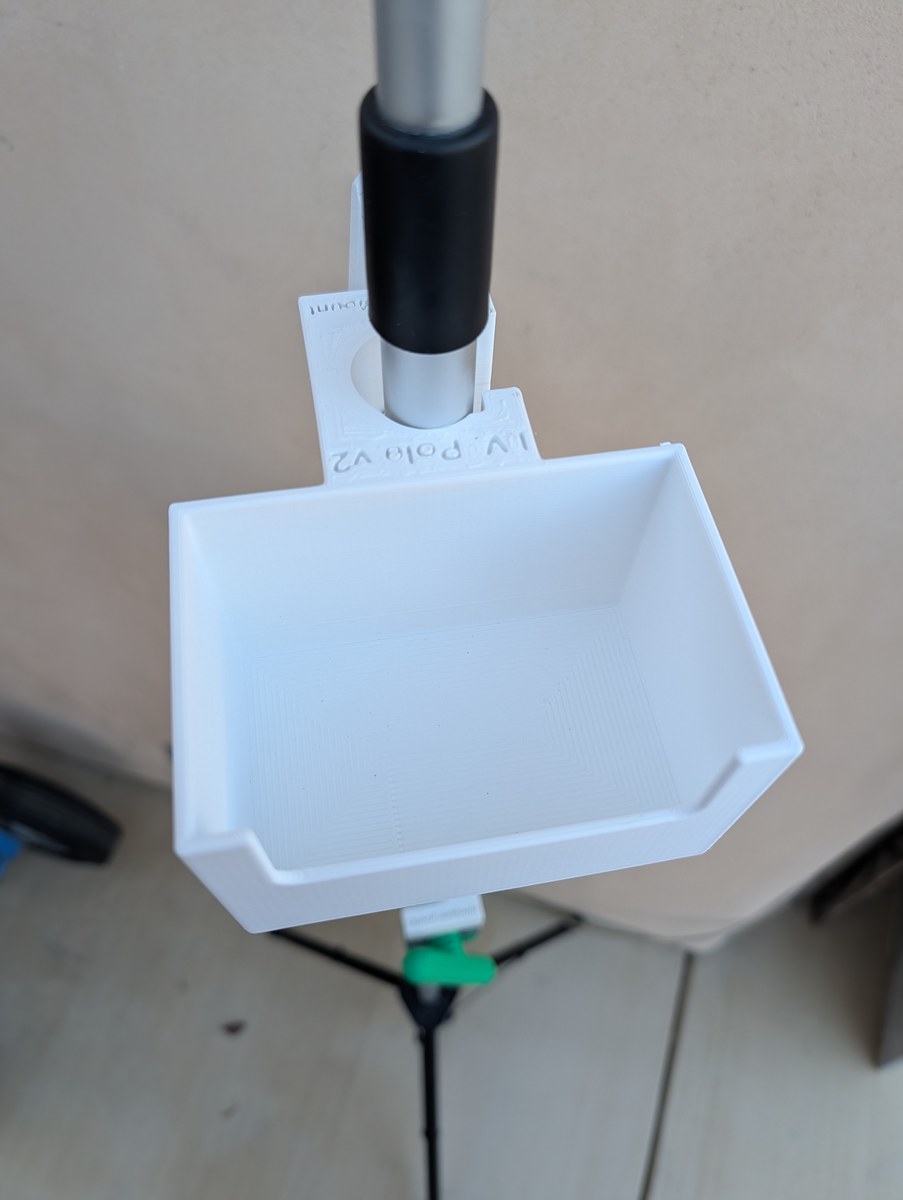

V2 cradle empty — top-down

Top-down — "I.V. Pole v2" label embossed on body

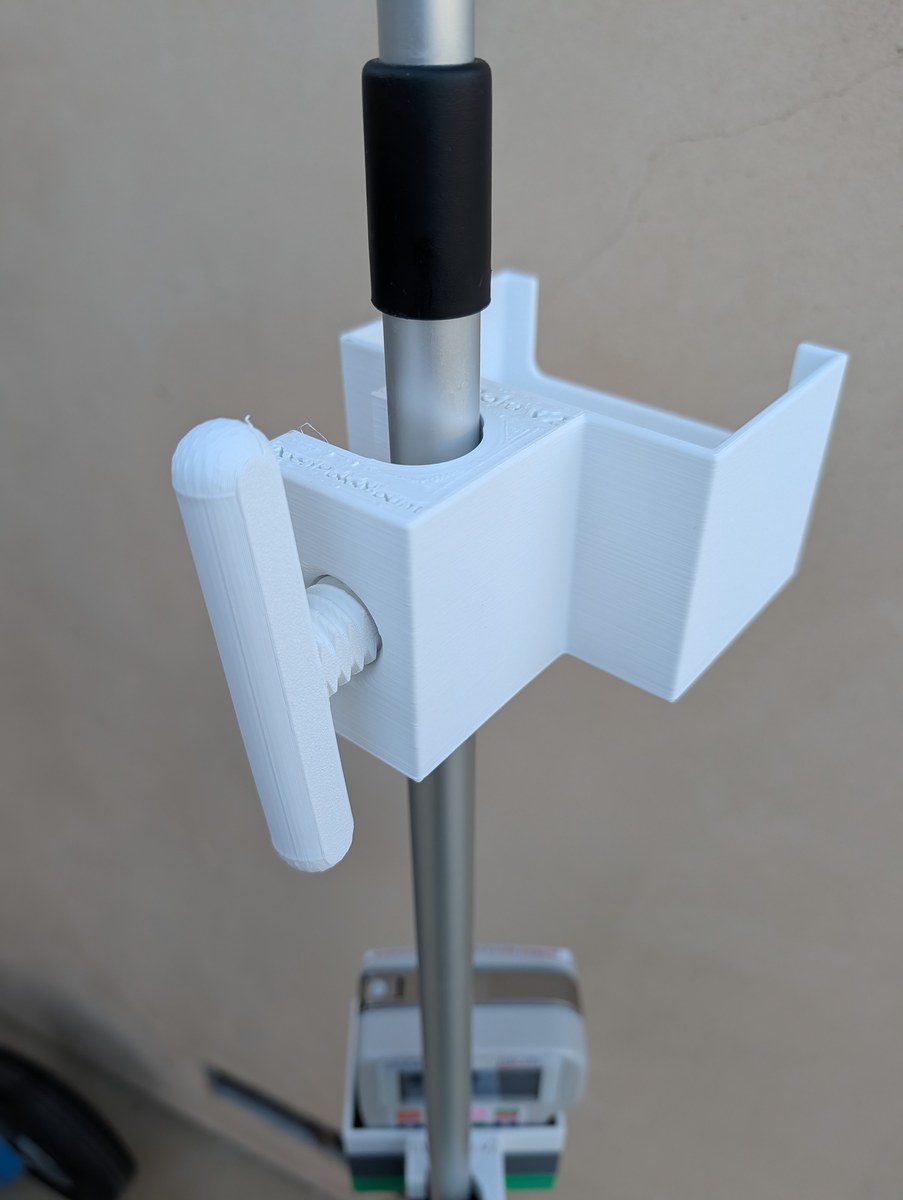

V2 cradle empty — rear view

Rear — U-shaped pole channel and cradle walls

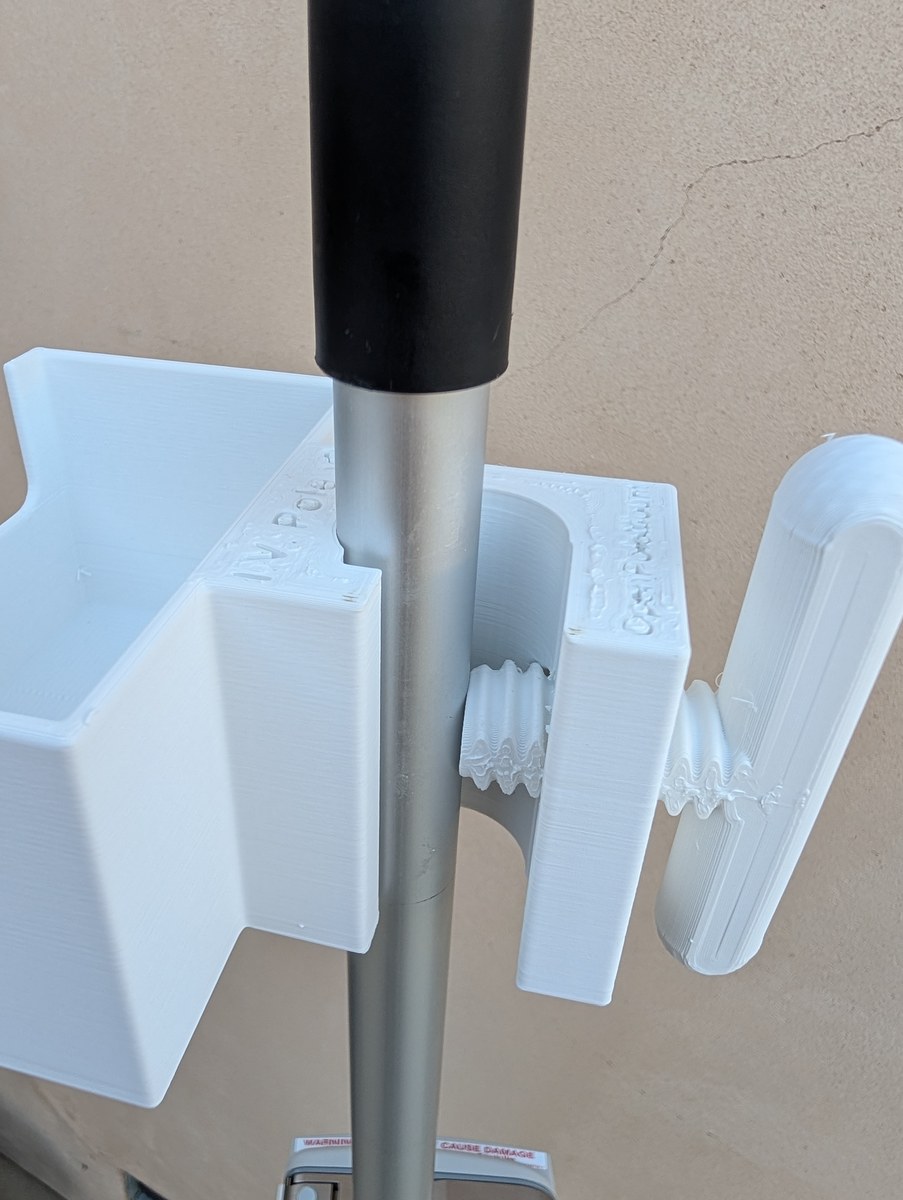

V2 pole channel and thumbscrew close-up

Channel detail — thumbscrew seats flush against pole

🖨️ Print it yourself — free & open source
Download the v2 STL files and print on any FDM printer. This is the whole point of the project.
Print Guide →
No printer or maker nearby? You can have v2 printed on demand and shipped at cost via Slant 3D / Teleport — a fallback, not the goal. No printer? Order one →
